HBIM, Capturing Data, As-Built Models

SCAN TO BIM | KSA

In addition to our expertise in façade engineering and roof cladding, we specialize in Scan to BIM services for projects of any scale. Our team has successfully completed over 40 Scan to BIM projects, including historical buildings and King Abdul Aziz Palaces across Saudi Arabia. Our team is equipped with the latest scanning technology and software, which allows us to precisely capture geometrical details along with informative details associated with every element archived. The result is a stunning BIM Model that is rich in information. We also developed special solutions to overcome geometrical and CAD interoperability problems that enhanced the work for the Saudi Ministry of Culture.

Saudi Arabia

Multiple Years [2020,2022,2023]

Documenting over 40 buildings yearly

HBIM, Capturing Data, As-Built Models

IMPRESSIVE LEVEL OF ACCURACY!

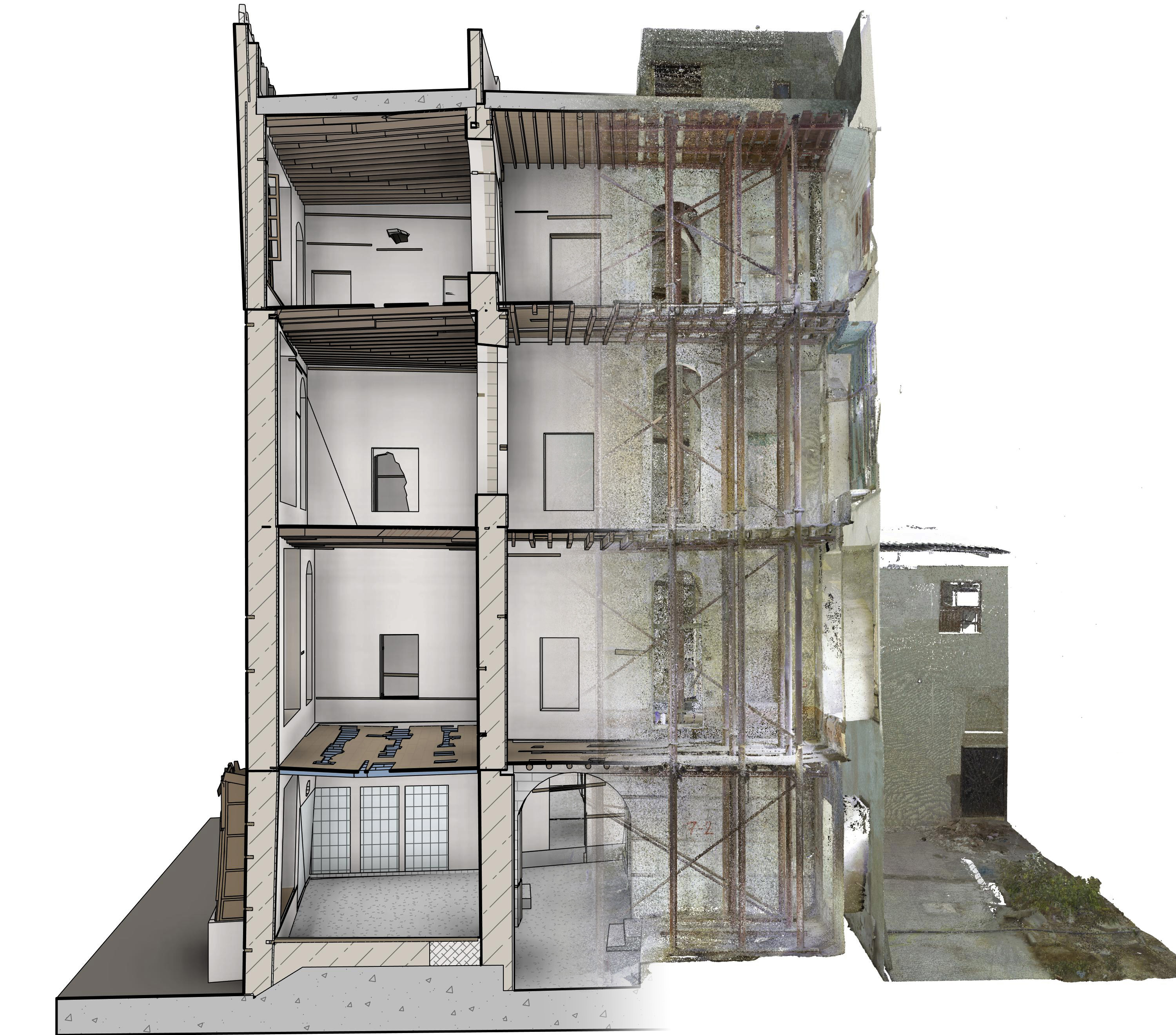

The following comparison between Point Cloud and Revit geometry highlights the impressive level of accuracy achieved by our team in capturing the project details.

Documenting over 40 buildings yearly

DOCUMNETION PROCESS

12,000 LINES OF CODE

In this instance, we have developed over 12,000 lines of code to accurately calculate and correct the flawed wireframe supplied by the client for the panels. This enables us to efficiently transform the IFC sheets into a detailed BIM model, which includes material takeoff (MTO) data for each individual panel

All images used in website profile have been generated by our in-house team of architects. We do not use any third-party images or copyrighted material without obtaining the necessary permissions.
